54509 YORP (2000 PH5)
Classification: APO [NEO]
H:22.66 mag, G:0.15
Wavefront file Reference: 2007Sci...316..274T

  MPC page for this object   |  JPL SBDB page for this object   |  NEODyS-2 page for this object   |  ESA SSA page for this object

History of Radar Detections
Year Month Transmitter Receiver Frequency Obs
2001 Jul Goldstone Goldstone 8560 [G]
2004 Jul Arecibo Arecibo 2380 [A]
2005 Jul Arecibo Arecibo 2380 [A]

Radar-Based Physical Properties
                 [edit]
name symbol value units uncertainty reference notes
morphology
number of components N 1 - single 2007Sci...316..274T
morphological type irregular 2007Sci...316..274T Both linear and angular features
spectrum-based or image-based dimensions
maximum range extent Rmax 0.075 km 0.0075 2007Sci...316..274T
minimum range extent Rmin 0.06 km 0.0075 2007Sci...316..274T
maximum Doppler bandwidth Bmax 19 Hz 2 2007Sci...316..274T 2380 MHz (2005)
minimum Doppler bandwidth Bmin 10 Hz 1 2007Sci...316..274T 2380 MHz (2004)
effective diameter Deff 0.135 km 0.015 2007Sci...316..274T
quality code for size Q

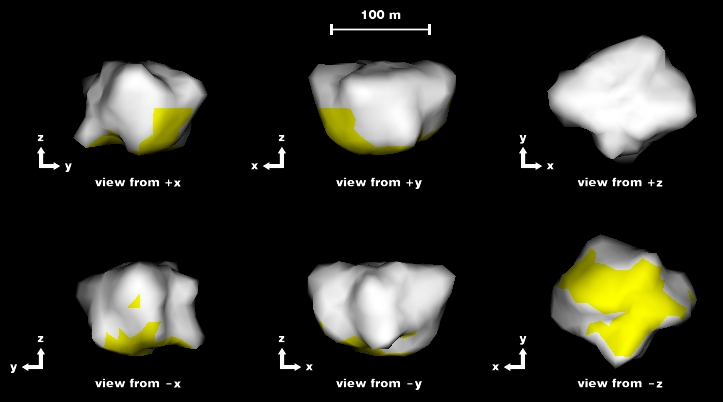

shape-based dimensions
equivalent diameter Dequ 0.112777 km 5% 2007Sci...316..274T
extent along principal axis x Ex 0.149285 km 5% 2007Sci...316..274T
extent along principal axis y Ey 0.133513 km 5% 2007Sci...316..274T
extent along principal axis z Ez 0.095663 km 5% 2007Sci...316..274T
DEEVE extent along x Dx 0.134458 km 5% 2007Sci...316..274T
DEEVE extent along y Dy 0.111095 km 5% 2007Sci...316..274T
DEEVE extent along z Dz 0.096024 km 5% 2007Sci...316..274T
surface area A 0.04642422 km2 10% 2007Sci...316..274T
volume V 0.0007510349 km3 15% 2007Sci...316..274T
spin
spin period Pspin 0.2029007 h 0.0000001 2007Sci...316..274T 2001 July 27 at 0 h UTC
spin rate ω 42582.41 deg/day 0.02 2007Sci...316..274T 2001 July 27 at 0 h UTC
YORP acceleration ω̇ 0.0002 deg/day2 0.00002 2007Sci...316..274T
spin axis ecliptic longitude λ 180 deg 10 2007Sci...316..274T
spin axis ecliptic latitude β -85 deg 10 2007Sci...316..274T
reflectivity
radar cross-section OC σOC 0.0015 km2 0.0004 2007Sci...316..274T Freq: 2380&8560
radar cross-section SC σSC km2
radar cross-section σT km2
projected area Aproj km2
radar albedo OC σ̂OC 0.13 0.03 2007Sci...316..274T Freq: 2380&8560
radar albedo SC σ̂SC
radar albedo σ̂T
circular polarization ratio μC 0.21 0.02 2007Sci...316..274T Freq: 2380&8560

Orbital Elements at Epoch 2024-03-31 00:00 TT from MPO692518 (heliocentric ecliptic J2000)
Element Value Units
e 0.2299934
a 1.0059147 AU
i 1.59941 deg
om 278.19116 deg
w 278.99613 deg
ma 263.97113 deg
n 0.97692749 deg/d

Link to complete orbital information at Minor Planet Center

Earth Close-Approach Data (+/- 10 years)
date nominal distance RTT SNR/run at Arecibo
2014-08-15 14:04:00 0.49032 489.3 0.0

Link to complete Close-Approach Data on SBDB at JPL
